Single Row , Cylindrical Roller Bearing With 670mm Bore NU 20 / 670 ECMA

Product Details:

Place of Origin:China
Brand Name:HDBB,,NACHI,NTN,KOYO or OEM
Certification:ISO9001:2000
Model Number:NU 20/670 ECMA

Payment & Shipping Terms:

Minimum Order Quantity:1-99 UNIT
Price:
Packaging Details:PAPER BOX,CARTON.WOODEN CASE
Delivery Time:3-25 days, according to the order quantity
Payment Terms:TT OR L/C
Supply Ability:1000000
Detailed Product Description

Single Row , Cylindrical Roller Bearing With 670mm Bore NU 20 / 670 ECMA





Detailed Product Description





Model:NU 20/670 ECMA

Dimension:670x980x180mm

Bore Size:670mm

Outside Diameter:980mm

Width:180mm



Basic Dynamic Load Rating:5390kN

Basic Static Load Rating:11000kN

Material of Rings and Balls: Chrome steel,Carbon steel, Stainless steel

Cage Material: Brass,Steel,Nylon



Package: Usually made by plastic tube+anti-rust paper+box+carton

Terms of Payment: T/T(30% deposit in advance), Irrevocable L/C at sight, Western Union

Delivery Time: 3-25 days, according to the order quantity



Application : motor, locomotives, autos,spindle,equipment, internal combustion engine, generator, gas turbines, reducer, rolling mill, vibrating screen and lifting transportation machinery, etc.



Single row: NU, NJ, NUP, N, NCF and NJG designs

Double row: NNU, NN and  NNF designs



Quick description:

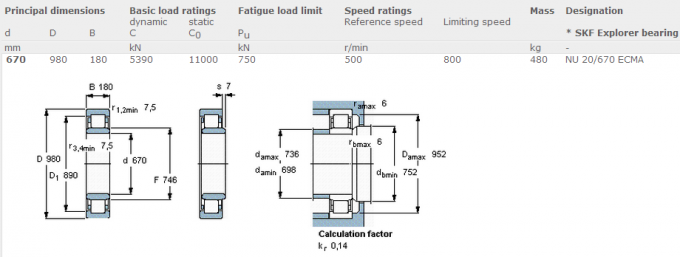

Bearing ModelNU 20/670 ECMA
TypeCylindrical Roller Bearing
Bore Size (mm)670
Outside Diameter (mm)980
Width (mm)180
Mass (kg)480
MaterialChrome Steel, Carbon steel, Stainless steel
Cage MaterialBrass
Number of RowSingle Row
Precision RatingP5. P6
Basic Dynamic Load Rating (Cr)5390 kN
Basic Static Load Rating (Cor)11000 kN
Limiting Speed800 r/min



Single Row , Cylindrical Roller Bearing With 670mm Bore NU 20 / 670 ECMA

Feature:

    Cylindrical rollers have linear contact with the raceway, and the bearings can carry heavier radial load. Applications are found in situations characterized by heavy load and shock load and also high rotation speed. The N type and NU type bearings can be movable along the shaft. liner bearing, line bearing, linear bearing, They can adapt to the position changes between the shaft and housing caused by the thermal expansion or the mounting error and are most suitable for free end shafts. NJ and NF types can accept certain axial load in one direction, and NH and NUP types can accept certain axial load in two directions. Inner ring and outer ring can be separable, and be they are convenient to mount and dismount. FC, FCD and FCDP types can carry comparatively heavy radial load and are mainly applied for mill rolls. liner bearings, line bearings, linear bearings, steel mill bearing, cylindrical roller bearing, heavy load bearing, double row bearing, single row cylindrical roller bering, double row cylindrical roller bearing, four row cylindrical roller bering, Large Cylindrical roller bearings, Large diameter cylindrical roller bearings, Custom Cylindrical roller bearings, Large size cylindrical roller bearings.



Applications:

    These bearings are mostly found in middle-sized and large-sized motors, electricity generators, internal combustion engines, gas turbines, machine tool spindles, deceleration devices, unloading and lifting machines and other industrial machines.







ModelBoundary dimensions (mm)Basic load ratings (KN)Limiting speed (r/min)Weight (KG)separate thrust collar code
dDBB1RsminR1sminFw(Ew)dyc_Crstc_CorOld_specDesignations
NJ222010018046102.12120260385320038005.6HJ2220
NU222010018046102.12120260385320038005.6HJ2220
NJ2240 20036098144424490516001500180045.5HJ2240
NU23341703601201644220116018581400170061.1-
NJ23341703601201444220116018581400170062.5-
